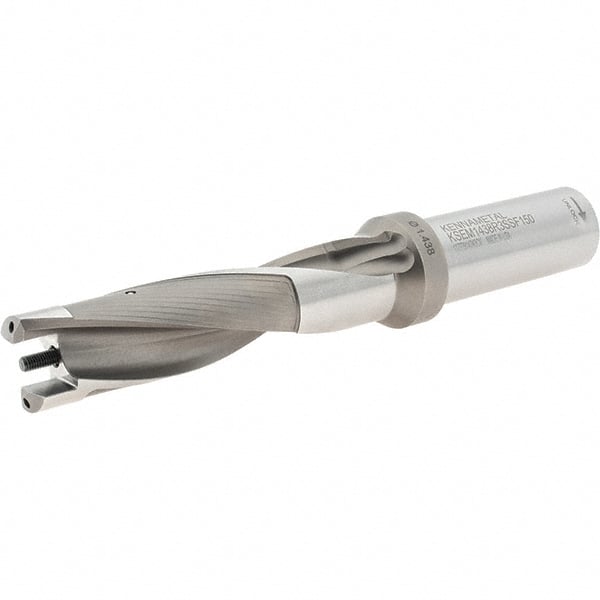

Kennametal - 36.53 to 37.51mm Diam, 3xD, 111mm Max Depth, 1-1/2" Shank Diam, 171.96mm Flute, 285.75mm OAL, Replaceable Tip Drill - KSEM1438 Insert, 10 Seat Size, Series KSEM
Item #: 02735090
Brand: Kennametal
Model #: 1616110
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 36.53 |
| Minimum Drill Diameter (Decimal Inch) | 1.4382 |
| Maximum Drill Diameter (mm) | 37.51 |
| Maximum Drill Diameter (Decimal Inch) | 1.4768 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 4.3700 |
| Maximum Drill Depth (mm) | 111.00 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | KSEM1438 |
| Insert Seat Size | 10 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.2200 |
| Flute Length (mm) | 171.96 |
| Flute Length (Decimal Inch) | 6.7701 |
| Overall Length (mm) | 285.75 |
| Overall Length (Decimal Inch) | 11.2500 |
| Shank Length (Decimal Inch) | 3.7500 |
