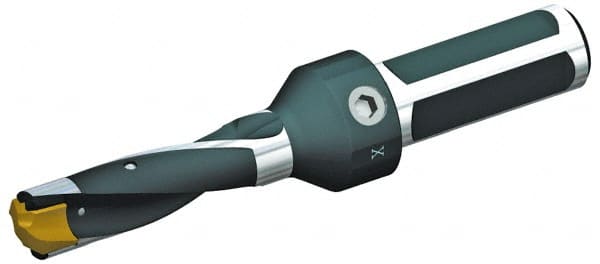

Kennametal - 37.31 to 38.31mm Diam, 3xD, 114.05mm Max Depth, 1-1/2" Shank Diam, 175.01mm Flute, 288.93mm OAL, Replaceable Tip Drill - KSEM1469 Insert, 10 Seat Size, Series KSEM
Item #: 02735108
Brand: Kennametal
Model #: 1616132
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 37.31 |
| Minimum Drill Diameter (Decimal Inch) | 1.4689 |
| Maximum Drill Diameter (mm) | 38.31 |
| Maximum Drill Diameter (Decimal Inch) | 1.5083 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 4.4900 |
| Maximum Drill Depth (mm) | 114.05 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | KSEM1469 |
| Insert Seat Size | 10 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.2300 |
| Flute Length (mm) | 175.01 |
| Flute Length (Decimal Inch) | 6.8902 |
| Overall Length (mm) | 288.93 |
| Overall Length (Decimal Inch) | 11.3752 |
| Shank Length (Decimal Inch) | 3.7500 |
