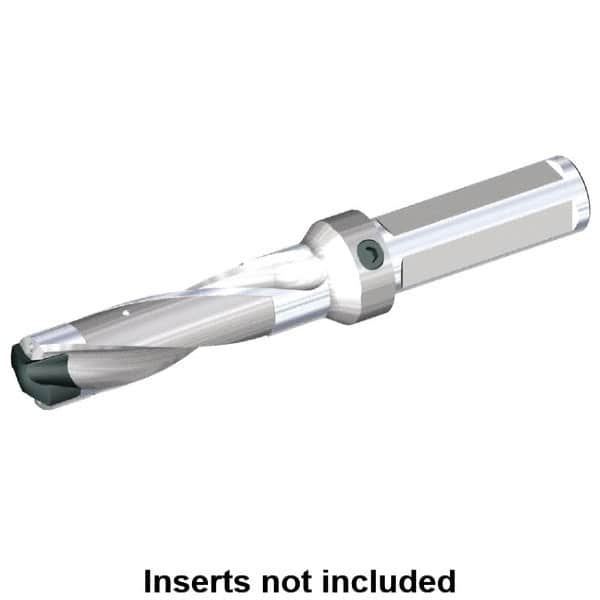

Kennametal - 14.3 to 14.5mm Diam, 3xD, 42.93mm Max Depth, 3/4" Shank Diam, 55.52mm Flute, 128.58mm OAL, Replaceable Tip Drill - KSEM0563 Insert, B Seat Size, Series KSEM
Item #: 02735272
Brand: Kennametal
Model #: 1785250
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 14.30 |
| Minimum Drill Diameter (Decimal Inch) | 0.5630 |
| Maximum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5709 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.6900 |
| Maximum Drill Depth (mm) | 42.93 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0563 |
| Insert Seat Size | B |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.0900 |
| Flute Length (mm) | 55.52 |
| Flute Length (Decimal Inch) | 2.1858 |
| Overall Length (mm) | 128.58 |
| Overall Length (Decimal Inch) | 5.0622 |
| Shank Length (Decimal Inch) | 2.0000 |
