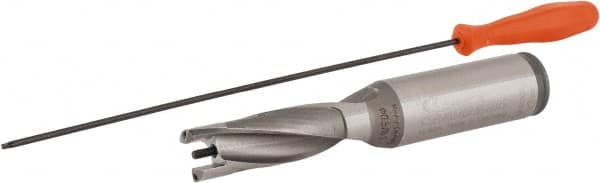

Kennametal - 14.68 to 15.18mm Diam, 3xD, 44.05mm Max Depth, 3/4" Shank Diam, 2.34" Flute, 4-1/2" OAL, Replaceable Tip Drill - KSEM0578 Insert, A Seat Size, Series KSEM
Item #: 02735454
Brand: Kennametal
Model #: 2238526
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 14.68 |
| Minimum Drill Diameter (Decimal Inch) | 0.5780 |
| Maximum Drill Diameter (mm) | 15.18 |
| Maximum Drill Diameter (Decimal Inch) | 0.5976 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.7300 |
| Maximum Drill Depth (mm) | 44.05 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0578 |
| Insert Seat Size | A |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0900 |
| Flute Length (Decimal Inch) | 2.3400 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Length (Decimal Inch) | 2.0000 |
