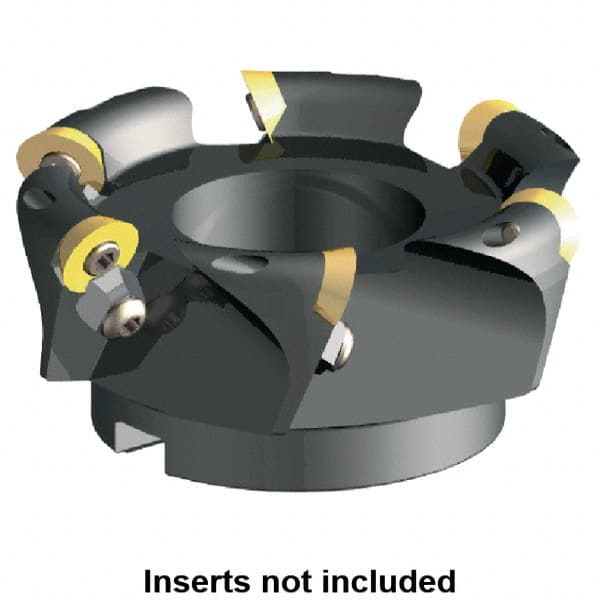

Kennametal - 2" Cut Diam, 0.29" Max Depth, 3/4" Arbor Hole, 3 Inserts, RFCW 53... Insert Style, Indexable Copy Face Mill - KSSR Cutter Style, 31,900 Max RPM, 1-3/4 High, Series KSSR-RPF
Item #: 02745172
Brand: Kennametal
Model #: 1025614
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2900 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | KSSR-RPF |
| Number of Cutter Inserts | 3 |
| Insert Compatibility | RFCW 53... |
| Cutter Style | KSSR |
| Maximum RPM | 31900 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.5865 |
| Complete Insert Compatibility | RFCW 53... |
