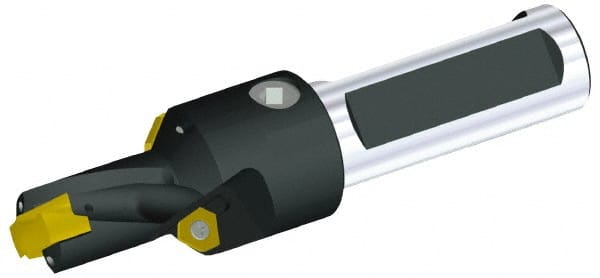

Kennametal - 23.81 to 24mm Diam, 8xD, 190.5mm Max Depth, 1" Shank Diam, 216.06mm Flute, 307.98mm OAL, Replaceable Tip Drill - KSEM0938 Insert, 4 Seat Size, Series KSEM
Item #: 02754315
Brand: Kennametal
Model #: 1517235
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 23.81 |
| Minimum Drill Diameter (Decimal Inch) | 0.9374 |
| Maximum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.9449 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 7.5000 |
| Maximum Drill Depth (mm) | 190.50 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | KSEM0938 |
| Insert Seat Size | 4 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1500 |
| Flute Length (mm) | 216.06 |
| Flute Length (Decimal Inch) | 8.5063 |
| Overall Length (mm) | 307.98 |
| Overall Length (Decimal Inch) | 12.1252 |
| Shank Length (Decimal Inch) | 3.0000 |
