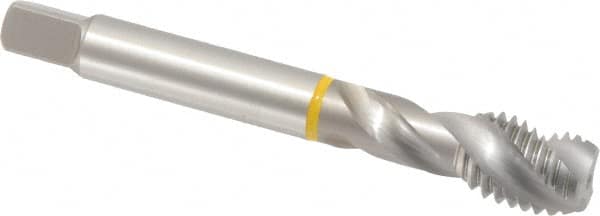

Emuge - 5/8-11 UNC 3 Flute 2B Modified Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 4.331" OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 02774222
Brand: Emuge
Model #: CU501000.5015
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/8-11 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.3310 |
| Helix Angle | 35 |
| Thread Standard | UNC |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.8660 |
| Flute Type | Medium Spiral |
| Series/List | Enorm |
| Shank Diameter (Decimal Inch) | 0.4800 |
