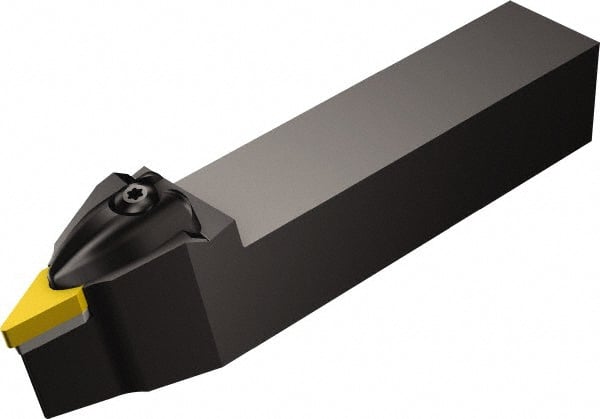

Sandvik Coromant - DVVN, Neutral Cut, 17.50° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, VNMG 16 04 08 Insert Compatibility, Series T-Max P
Item #: 02788677
Brand: Sandvik Coromant
Model #: 5732464
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DVVN |
| Rake | Negative |
| Rake Angle | -4 |
| Series | T-Max P |
| Lead Angle | 17.50 |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | VNMG 16 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6500 |
| Head Length (Decimal Inch) | 1.8800 |
| Toolholder Material | Steel |
