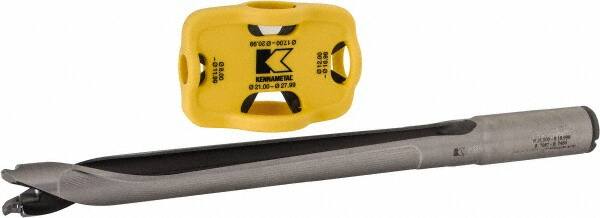

Kennametal - 18 to 18.99mm Diam, 8xD, 5.98" Max Depth, 3/4" Shank Diam, 7.13" Flute, 9-1/4" OAL, Replaceable Tip Drill - W Seat Size, Series KenTIP
Item #: 02815744
Brand: Kennametal
Model #: 3033025
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 18.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7476 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 5.9800 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Seat Size | W |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1200 |
| Flute Length (Decimal Inch) | 7.1300 |
| Overall Length (Decimal Inch) | 9.2500 |
| Shank Length (Decimal Inch) | 2.0000 |
