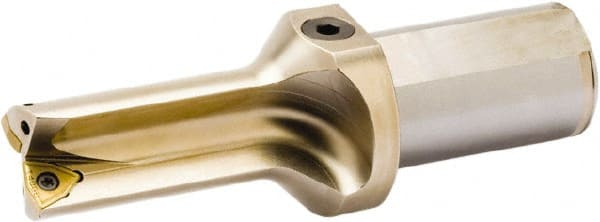

Seco - 1.182" Max Drill Depth, 2xD, 15mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 02852655
Brand: Seco
Model #: 36807
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (mm) | 15.00 |
| Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Depth (Decimal Inch) | 1.1820 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7090 |
| Overall Length/Projection (Decimal Inch) | 5.5990 |
| Insert Compatibility (Outside or Peripheral) | WCMX 030208.. |
| Insert Compatibility | WCMX 030208-86 |
| Flute Length (Decimal Inch) | 1.3790 |
| Body Length (Decimal Inch) | 2.5600 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.7720 |
| Series | PerfoMAX |
