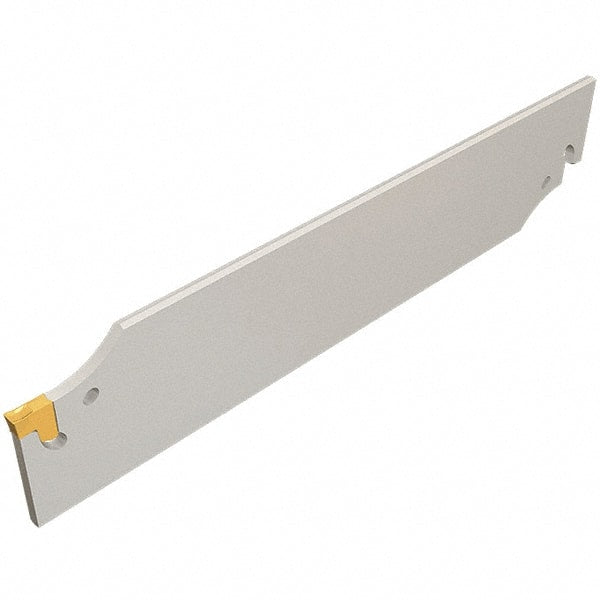

Iscar - 3/4" Blade Height, 2.5mm Blade Width, 86mm OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 02858074
Brand: Iscar
Model #: 2302364
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 19.00 |
| Blade Height (Decimal Inch) | 0.7480 |
| Blade Width (mm) | 2.50 |
| Blade Overall Length (mm) | 86.00 |
| Blade Style | TGFH |
| Insert Style | TAG N-C/W/M; TAG N-J/JS/JT; TAG R/L-J/JS |
| Insert Width (mm) | 1.40 |
| Insert Width (Decimal Inch) | 0.0550 |
| Series | Tang-Grip |
| Insert Seat Size | 2.5 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1800 |
| Cutting Height (mm) | 15.70 |
| Cutting Height (Decimal Inch) | 0.6180 |
| Minimum Insert Width (mm) | 1.40 |
| Minimum Insert Width (Decimal Inch) | 0.0550 |
| Maximum Insert Width (mm) | 1.40 |
| Maximum Insert Width (Decimal Inch) | 0.0550 |
| Complete Insert Compatibility | TAG L1.4J-8D; TAG L1.4JS-10D; TAG N1.4C; TAG N1.4J; TAG R1.4J-8D; TAG R1.4JS-10D |
| Complete Tool Block/Toolholder Style Compatibility | SGTBN 16-2; SGTBR 19-2 |
