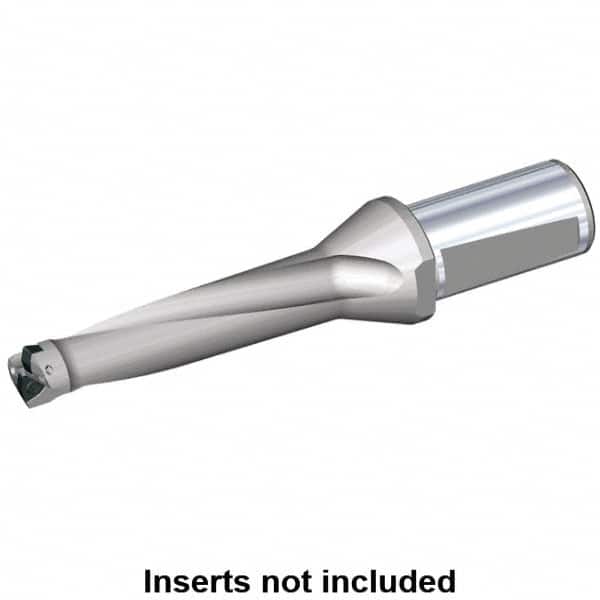

Kennametal - 88mm Max Drill Depth, 4xD, 22mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 02870707
Brand: Kennametal
Model #: 1155607
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 22.00 |
| Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 88.00 |
| Maximum Drill Depth (Decimal Inch) | 3.4646 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Diameter (mm) | 23.00 |
| Overall Length/Projection (mm) | 181.00 |
| Overall Length/Projection (Decimal Inch) | 7.1260 |
| Insert Compatibility (Outside or Peripheral) | DFT 0302.. |
| Insert Compatibility | DFT 0302.. |
| Flute Length (mm) | 106.00 |
| Flute Length (Decimal Inch) | 4.1732 |
| Body Length (Decimal Inch) | 4.8425 |
| Body Length (mm) | 123.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2835 |
| Collar Diameter (mm) | 41.90 |
| Collar Diameter (Decimal Inch) | 1.6496 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | R1/4 |
