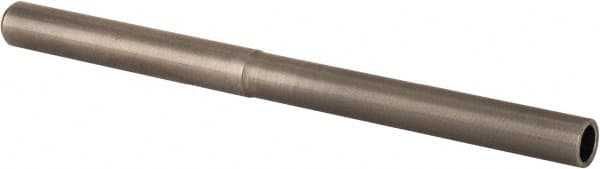

Iscar - Multimaster 8mm 90° Stepped Shank Milling Tip Insert Holder & Shank - 0.299" Neck Diam, T05 Neck Thread, 110mm OAL, Carbide MM S-A Tool Holder
Item #: 02882231
Brand: Iscar
Model #: 3104399
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 90 Degree Stepped Shank |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Neck Diameter (Decimal Inch) | 0.2990 |
| Neck Thread Size | T05 |
| Toolholder Material | Carbide |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3310 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 2.3190 |
| Effective Length (mm) | 60.00 |
| Effective Length (Decimal Inch) | 2.3622 |
| Milling Tip Style | MM EB, MM EC-4, MM HBR, MM HCR, MM TS-N |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
