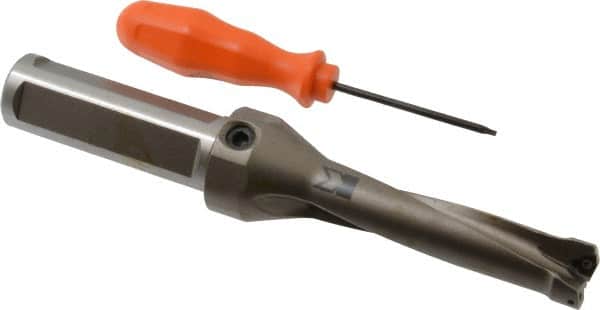

Kennametal - 3-1/4" Max Drill Depth, 4xD, 13/16" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 02960722
Brand: Kennametal
Model #: 1522139
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 20.64 |
| Drill Diameter (Inch) | 13/16 |
| Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Depth (Inch) | 3-1/4 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Insert Size (mm) | 3.97x2.95 |
| Insert Size (Decimal Inch) | 0.1560x0.1160 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8125 |
| Overall Length/Projection (mm) | 120.65 |
| Overall Length/Projection (Decimal Inch) | 4.7500 |
| Insert Compatibility | DFT 030304 |
| Body Length (Decimal Inch) | 4.7500 |
| Body Length (mm) | 120.65 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
| Series | Drill-Fix |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
