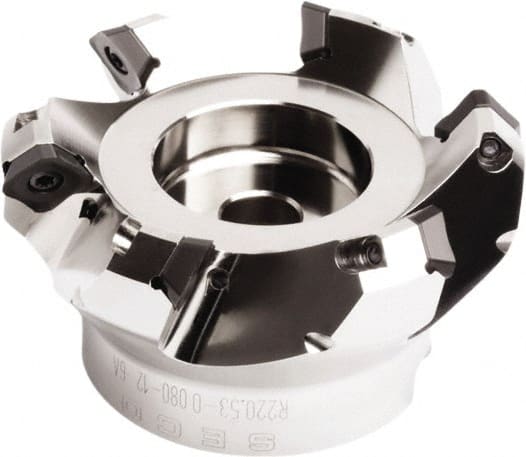

Seco - 6.93" Cut Diam, 2" Arbor Hole, 0.295" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, SE.. 1505 Insert, Right Hand Cut, 10 Flutes, Series QuattroMill
Item #: 02993970
Brand: Seco
Model #: 21889
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.9300 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | SE.. 1505 |
| Series | QuattroMill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Number of Flutes | 10 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Keyway Width (Decimal Inch) | 0.7600 |
| Maximum Body Diameter (Decimal Inch) | 6.3000 |
| Maximum RPM | 5200 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | SEEX 1505AFN-E10; SEEX 1505AFN-M12; SEEX 1505AFTN-M17; SEEX 1505ZZTN-M17; SEMX 1505AFTN-M18; SEMX 1505AFTN-MD20; SEMX 1505AFTN-ME15 |
