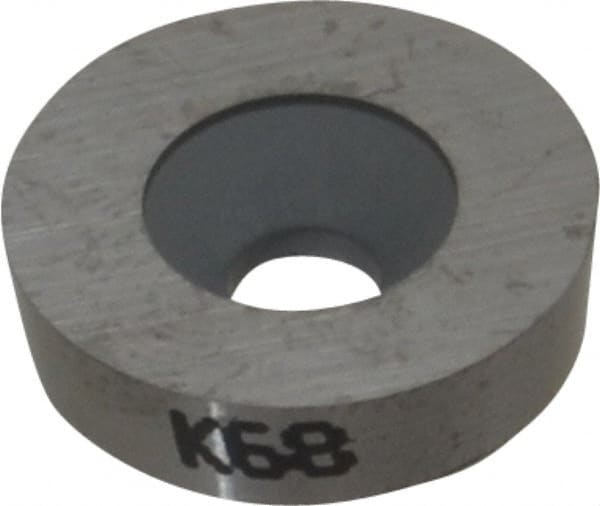

Kennametal - RD452 P Grade K68 Carbide Turning Insert - Uncoated, Round, 1/2" Inscr Circle, 17/64 Thick
Item #: 03057957
Brand: Kennametal
Model #: 1163030
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RD |
| Insert Size | 452 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.2656 |
| Manufacturer's Grade | K68 |
| Coating | Uncoated |
| Material Grade | C3 |
| Chip Breaker | P |
| Hole Diameter (Decimal Inch) | 0.1250 |
| Relief Angle | 15 |
| Primary Workpiece Material | M; K; N; S |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Round |
