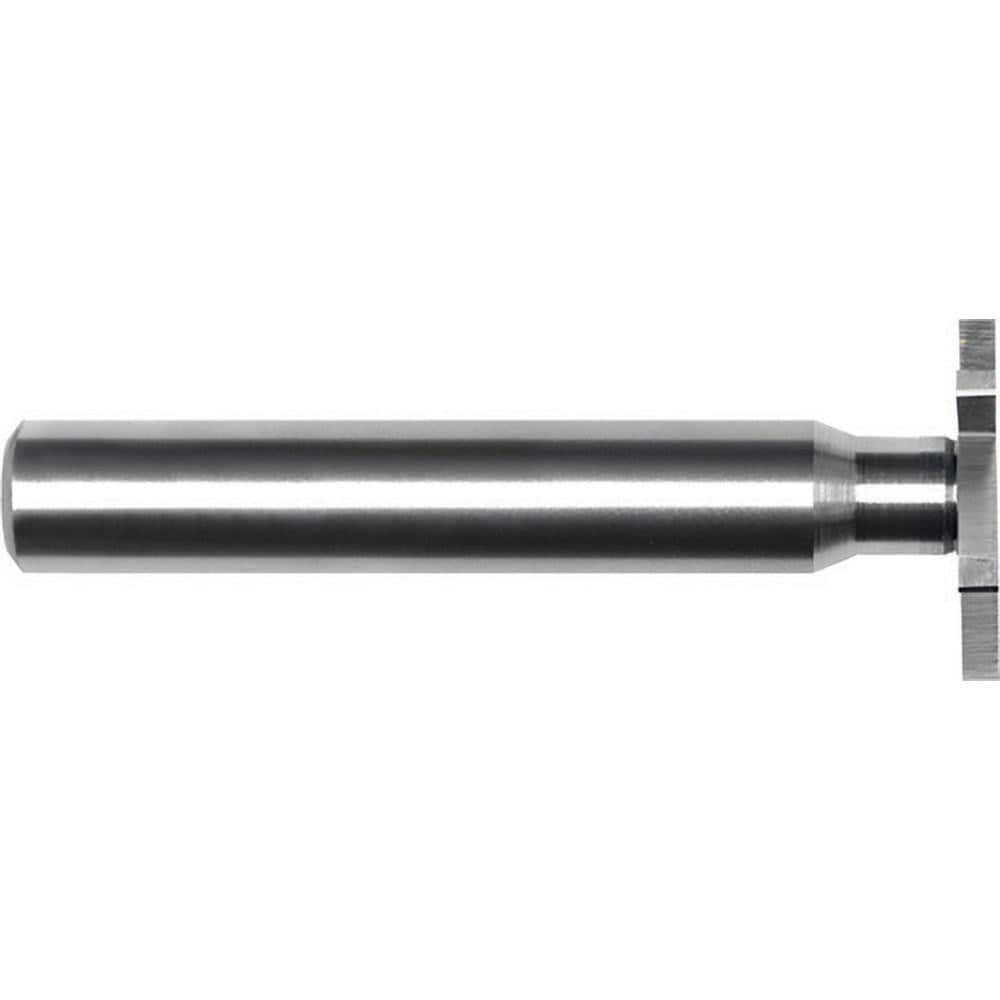

Woodruff Keyseat Cutter: 3/4" Cut Dia, 3/16" Cut Width, 1/2" Shank Dia, Straight Tooth
Item #: 87710000
Brand: Internal Tool
Model #: 78-1265-C
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 3/4 |
| Cutter Diameter (Decimal Inch) | 0.7500 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 3/16 |
| Cutting Width (Decimal Inch) | 0.1875 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.2800 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| American Standard Number | 606 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 78 |
| Coating/Finish | AlTiN |
| Number Of Teeth | 10 |
| UNSPSC Code | 23241631 |
| Country of Origin | UNITED STATES |
