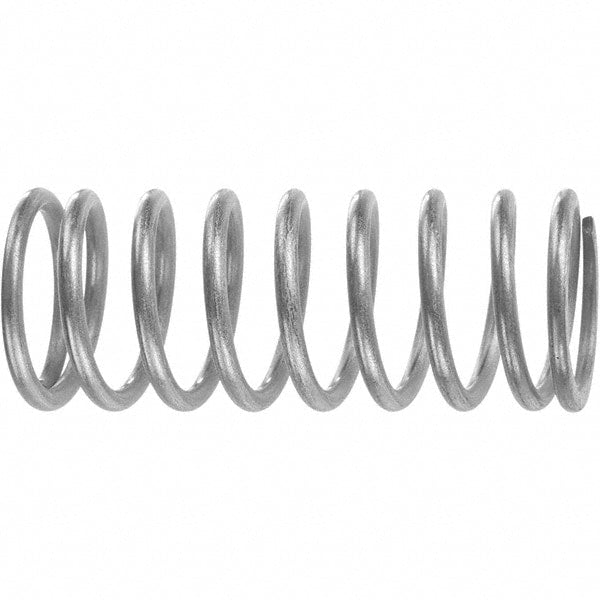

Precision Compression Spring: 0.8200" OD, 9" Free Length
Item #: 90181322
Brand: Associated Spring Raymond
Model #: C0823-085-9000M
Product Specifications
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.8200 |
| Free Length (Inch) | 9 |
| Spring Rate | 5.8 |
| End Type | Ground; Square |
| Maximum Work Load (Lb.) | 23.40 |
| Material | Carbon Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.0850 |
| Hole Diameter (Decimal Inch) | 0.6500 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 3.0700 |
| Free Length (Decimal Inch) | 9.0000 |
| Color | Silver |
| Standards | AMS 5112; ASTM A228 |
| UNSPSC Code | 31161904 |
| Country of Origin | China |
