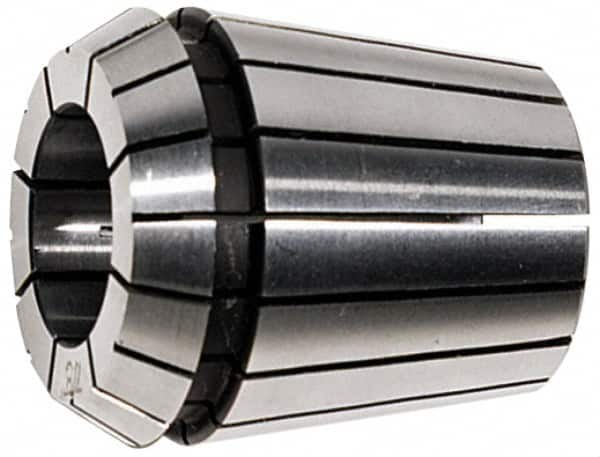

Kennametal - 17/32" ER40 Collet - 0.0203mm TIR, 46mm OAL, 41mm Overall Diam
Item #: 03094992
Brand: Kennametal
Model #: 2269960
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER40 |
| Size Range (Inch) | 17/32 |
| Size (Inch) | 17/32 |
| Size (Decimal Inch) | 0.5313 |
| TIR (mm) | 0.0203 |
| TIR (Decimal Inch) | 0.000800 |
| Minimum Collet Capacity (Decimal Inch) | 0.4913 |
| Maximum Collet Capacity (Decimal Inch) | 0.5313 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Overall Diameter (mm) | 41.00 |
| Overall Diameter (Decimal Inch) | 1.6140 |
| PSC Code | 5136 |
