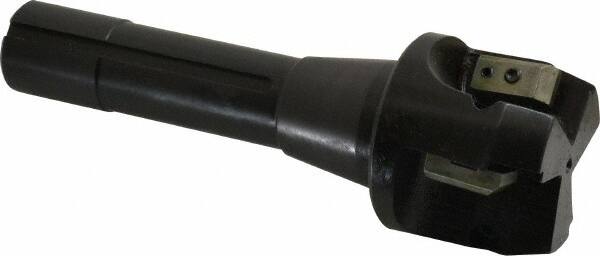

APT - 15° Lead Angle, 2" Max Cut Diam, 2" Min Cut Diam, 0.4063" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, SPG, SPU Insert Style, 5" OAL, Taper Shank
Item #: 03119005
Brand: APT
Model #: QM20-R8
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.000 |
| Shank Type | Taper Shank |
| Shank Taper Size | R8 |
| Lead Angle | 15 |
| Overall Length (Inch) | 5 |
| Insert Style | SPG; SPU |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.4063 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Clamp |
| Toolholder Style | QM |
| Number of Flutes | 4 |
