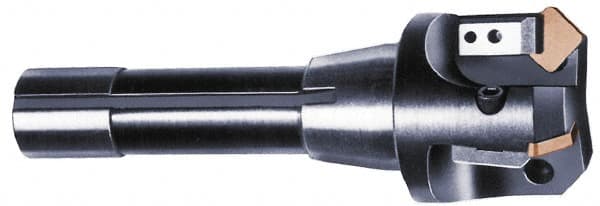

APT - 15° Lead Angle, 2" Max Cut Diam, 0.4063" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, SPC 42ZR, SPG 42., SPU 42. Insert Style, 3" OAL, Straight Shank
Item #: 03119203
Brand: APT
Model #: QM20-125
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.000 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Lead Angle | 15 |
| Overall Length (Inch) | 3 |
| Insert Style | SPC 42ZR, SPG 42., SPU 42. |
| Series | Quad-Mill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.4063 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Clamp |
| Toolholder Style | QM |
| Number of Flutes | 4 |
| Weldon Flat | No |
