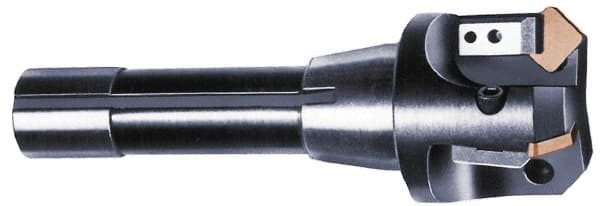

APT - 15° Lead Angle, 2-1/2" Max Cut Diam, 2-1/2" Min Cut Diam, 0.4063" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 5 Inserts, SPG, SPU Insert Style, 3" OAL, Straight Shank
Item #: 03119252
Brand: APT
Model #: QM250-125
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.500 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Lead Angle | 15 |
| Overall Length (Inch) | 3 |
| Insert Style | SPG; SPU |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.4063 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Clamp |
| Toolholder Style | QM |
| Number of Flutes | 4 |
| Weldon Flat | No |
