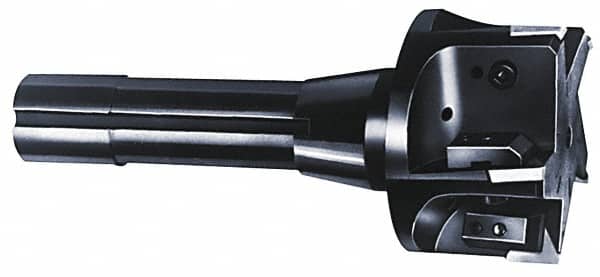

APT - 2" Cut Diam, 0.65" Max Depth of Cut, 5-1/4" OAL, Indexable Square Shoulder End Mill - TPC 32..., TPG 32., TPU 32. Inserts, 30 NST Taper Shank, 90° Lead Angle, Series Tri-Dex
Item #: 03123056
Brand: APT
Model #: EM20-S30
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Taper Shank |
| Shank Taper Size | 30 NST |
| Overall Length/Projection (Inch) | 5-1/4 |
| Lead Angle | 90 |
| Series | Tri-Dex |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.65 |
| Number of Cutter Inserts | 3 |
| End Mill Type | End Mill |
| Cutter Style | EM |
| Number of Flutes | 3 |
| Head Length (Inch) | 1-5/8 |
| Insert Compatibility | TPC 32..., TPG 32., TPU 32. |
