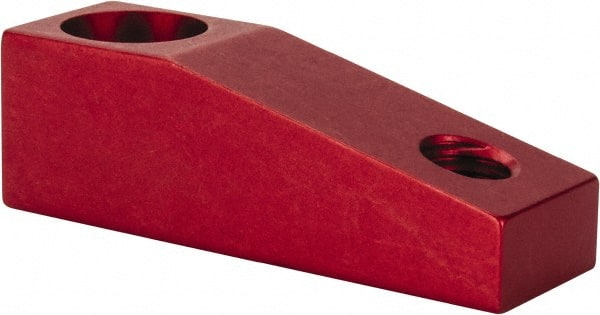

De-Sta-Co - 0.38 to 3/4" High, 3/8-16 Port, Aluminum, Single, Standard Length, Swing Clamp Arm - 2.311" OAL to 3/4" Overall Width
Item #: 03134327
Brand: De-Sta-Co
Model #: 841512
Exact Tooling IR#: 04
Features and Benefits
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Arm Shape | Single Arm |
| Product Compatibility | Series 8415 & 8416 |
| Length Type | Standard |
| Port Thread Size | 3/8-16 |
| Overall Length (mm) | 58.70 |
| Overall Length (Decimal Inch) | 2.3110 |
| Overall Width (mm) | 19.05 |
| Overall Width (Decimal Inch) | 0.7500 |
| Minimum Height (mm) | 9.65 |
| Minimum Height (Decimal Inch) | 0.3800 |
| Maximum Height (mm) | 19.10 |
| Maximum Height (Decimal Inch) | 0.7520 |
| Hub Width (Decimal Inch) | 0.7500 |
| Material | Aluminum |
