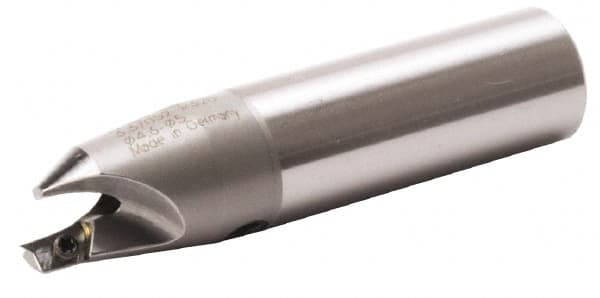

Kennametal - 5.55 to 6mm Diam, Straight Shank, 20mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 6mm Drill Shank Diam, 3.41020R901 Insert, 85mm OAL
Item #: 03160751
Brand: Kennametal
Model #: 1245720
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 6.00 |
| Minimum Drill Diameter (mm) | 5.55 |
| Body Shank Diameter (mm) | 20.00 |
| Body Shank Diameter (Decimal Inch) | 0.7874 |
| Drill Shank Diameter (mm) | 6.00 |
| Number of Drill Inserts | 1 |
| Insert Style | 3.41020R901 |
| Chamfer Angle | 45 |
| Body Diameter (mm) | 16.90 |
| Overall Length (mm) | 85.00 |
| Included Angle | 90 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Series | BF |
| Includes | Screw; Wrench |
