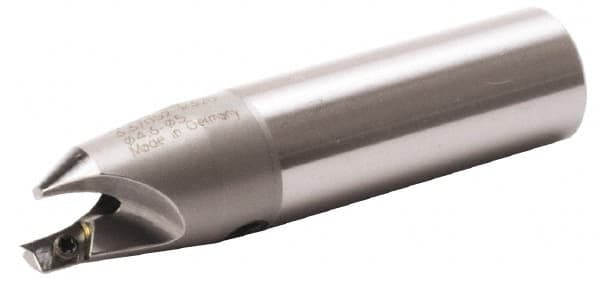

Kennametal - 15.5 to 16mm Diam, Straight Shank, 32mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 16mm Drill Shank Diam, 3.41220R901 Insert, 125mm OAL
Item #: 03160843
Brand: Kennametal
Model #: 1245729
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (mm) | 15.50 |
| Body Shank Diameter (mm) | 32.00 |
| Body Shank Diameter (Decimal Inch) | 1.2598 |
| Drill Shank Diameter (mm) | 16.00 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.41220R901 |
| Chamfer Angle | 45 |
| Body Diameter (mm) | 33.50 |
| Overall Length (mm) | 125.00 |
| Included Angle | 90 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Series | BF |
| Includes | Screw; Wrench |
