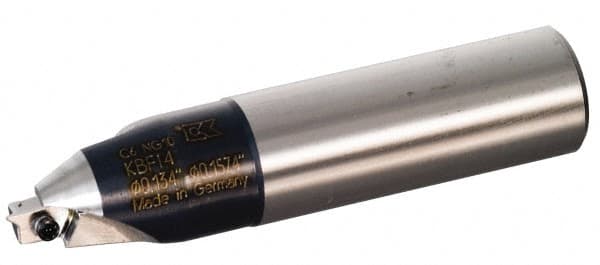

Kennametal - 13/32 to 27/64" Diam, Straight Shank, 25.4mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 11mm Drill Shank Diam, 3.41220R901 Insert, 4.53" OAL
Item #: 03160975
Brand: Kennametal
Model #: 1246708
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (Decimal Inch) | 0.4219 |
| Minimum Drill Diameter (Decimal Inch) | 0.4063 |
| Body Shank Diameter (mm) | 25.40 |
| Body Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Shank Diameter (mm) | 11.00 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.41220R901 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.1380 |
| Overall Length (Decimal Inch) | 4.5300 |
| Included Angle | 90 |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 2.2000 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Series | BF |
| Includes | Screw; Wrench |
