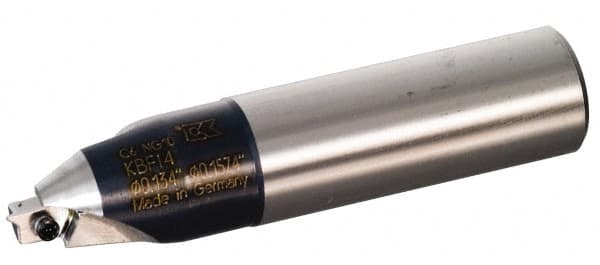

Kennametal - 31/64 to 1/2" Diam, Straight Shank, 25.4mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - 13mm Drill Shank Diam, 3.41220R901 Insert, 4.91" OAL
Item #: 03160991
Brand: Kennametal
Model #: 1246714
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Minimum Drill Diameter (Decimal Inch) | 0.4844 |
| Body Shank Diameter (mm) | 25.40 |
| Body Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Shank Diameter (mm) | 13.00 |
| Number of Drill Inserts | 2 |
| Insert Style | 3.41220R901 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.2210 |
| Overall Length (Decimal Inch) | 4.9100 |
| Included Angle | 90 |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 2.2000 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Series | BF |
| Includes | Screw; Wrench |
