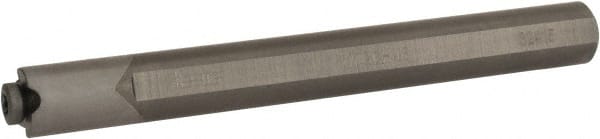

Iscar - 2.3mm Max Depth, 0.5mm to 5mm Width, Internal Right Hand Indexable Grooving Toolholder
Item #: 03207537
Brand: Iscar
Model #: 2800931
Product Specifications
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 0.0906 |
| Maximum Depth of Cut (Inch) | 0.0906 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Maximum Depth of Cut (mm) | 2.30 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Toolholder Style | MGCH |
| Insert Compatibility | GIQ |
| Shank Width/Diameter (mm) | 8.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3150 |
| Series | ChamGroove |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (mm) | 11.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.4331 |
| Center to Cutting Edge (mm) | 6.70 |
| Center to Cutting Edge (Decimal Inch) | 0.2638 |
| Manufacturers Catalog Number | MGCH 08 |
| Toolholder Material | Solid Carbide |
| OverallLength (mm) | 75.00 |
