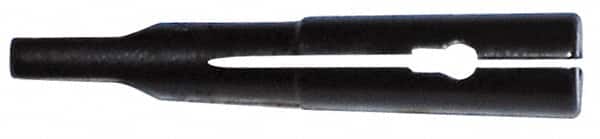

Scully Jones - 9/64 Inch, MT1 Outside Morse Taper, Drill Driver - 0.19 Inch Projection, 0.09 to 3/32 Inch Drill Tang Thickness
Item #: 03216819
Brand: Scully Jones
Model #: 09307
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Driver Type | Drill Driver |
| Outside Morse Taper Size | MT1 |
| Drill Size (mm) | 3.57 |
| Drill Size (Inch) | 9/64 |
| Drill Size (Decimal Inch) | 0.1406 |
| Projection (Decimal Inch) | 0.1900 |
| Drill Depth (Decimal Inch) | 0.7500 |
| Drill Tang Compatible | Yes |
| Maximum Drill Tang Thickness (Decimal Inch) | 0.0940 |
| Minimum Drill Tang Thickness (Decimal Inch) | 0.0900 |
| Drill Tang Length (Decimal Inch) | 0.2800 |
| Approval Listing/Regulations | ANSI/ASME B94.35 |
| Runout Maximum (Decimal Inch) | 0.0020 |
