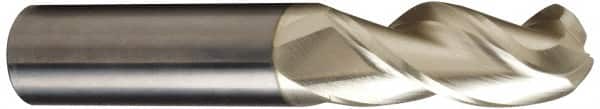

Ball End Mill: 0.625″ Dia, 2.5″ LOC, 3 Flute, Solid Carbide 5″ OAL, 5/8″ Shank Dia, 37 ° Helix, Uncoated, Single End
Item #: 03288354
Brand: Accupro
Model #: 35062540BN
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 2-1/2 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | No |
| Helix Angle | 37 |
| Length Of Cut Range (Decimal Inch) | 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Shank Diameter Tolerance | +0.0001 to -0.0004 in |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.5000 |
