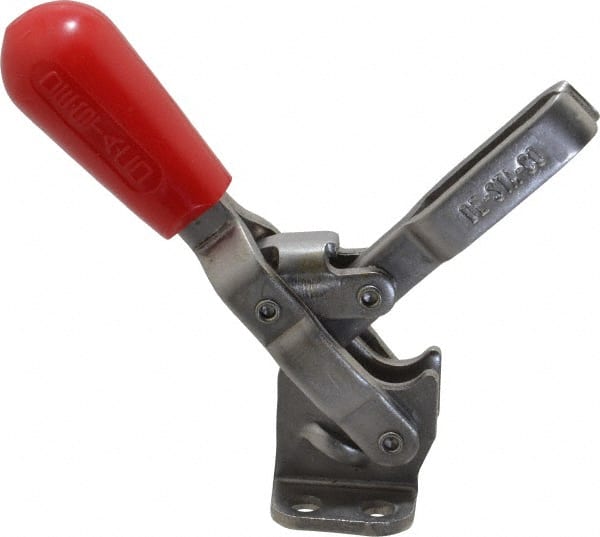

De-Sta-Co - 250 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 65° Handle Movement, 105° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Item #: 03336799
Brand: De-Sta-Co
Model #: 202-USS
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 1110.00 |
| Holding Capacity (Lb.) | 250.00 |
| Length Distance Between Mount Holes (mm) | 12.45 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.49 |
| Width Distance Between Mount Holes (mm) | 26.92 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.0600 |
| Height Under Bar (mm) | 23.37 |
| Height Under Bar (Decimal Inch) | 0.9200 |
| Overall Length (mm) | 87.88 |
| Overall Length (Decimal Inch) | 3.4600 |
| Overall Height (mm) | 109.98 |
| Overall Height (Decimal Inch) | 4.3300 |
| Base Length (mm) | 25.40 |
| Base Length (Decimal Inch) | 1.0000 |
| Base Width (mm) | 39.62 |
| Base Width (Decimal Inch) | 1.5600 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 5.59 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Front of Base To Tip Of Toggle Bar (mm) | 43.94 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.7300 |
| Bar Opening (Degrees) | 105.00 |
| Handle Movement (Degrees) | 65.00 |
| Maximum Mechanical Advantage | 5:1; 10:1 |
| Spindle Thread Size | 1/4-20 |
| Spindle Travel (mm) | 24.89 |
| Spindle Travel (Decimal Inch) | 0.9800 |
| Bar Width (Decimal Inch) | 0.9200 |
| Bar Width (mm) | 23.37 |
| Includes | (2) Nuts; Flanged Washers; Hex Head Spindle |
