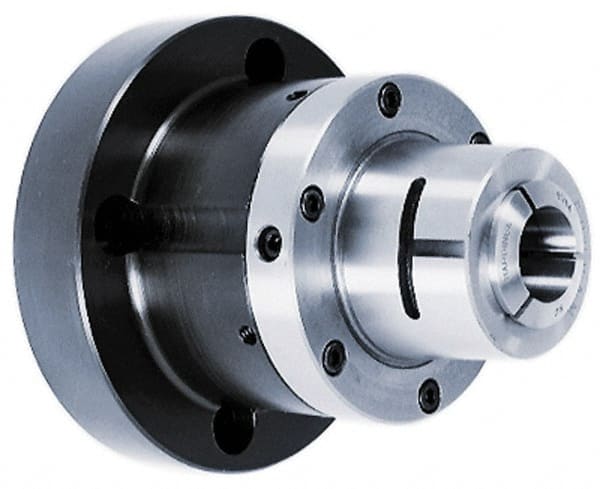

Dunham - 1-1/16 Inch Max Collet Capacity, 5C Collet Chuck - 5 Inch Overall Length, 0.0005 Inch TIR, 3.437 Inch Projection
Item #: 03389269
Brand: Dunham
Model #: DTC-5C-4T-A8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | 5C |
| Spindle Size | A-8 |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-1/16 |
| Projection (Decimal) | 3.4370 |
| Overall Length (Decimal) | 5.0000 |
| Through Coolant | Nonthrough Coolant |
| Nose Diameter (Decimal) | 2.1900 |
| TIR (Decimal Inch) | 0.0005 |
| PSC Code | 5136 |
