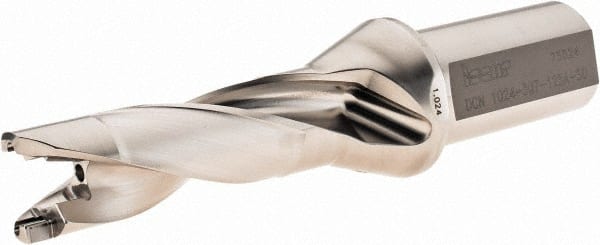

Iscar - 1.024 to 1.059" Diam, 3xD, 3.07" Max Depth, 1-1/4" Shank Diam, 7.06" OAL, Replaceable Tip Drill - ICK, ICM, ICP Insert, 26 Seat Size, DCN Toolholder, Series SumoCham
Item #: 03411444
Brand: Iscar
Model #: 3260104
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.0240 |
| Maximum Drill Diameter (Decimal Inch) | 1.0590 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.0700 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | ICK; ICM; ICP |
| Insert Seat Size | 26 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 4.7000 |
| Overall Length (Decimal Inch) | 7.0600 |
| Shank Length (Decimal Inch) | 2.3600 |
