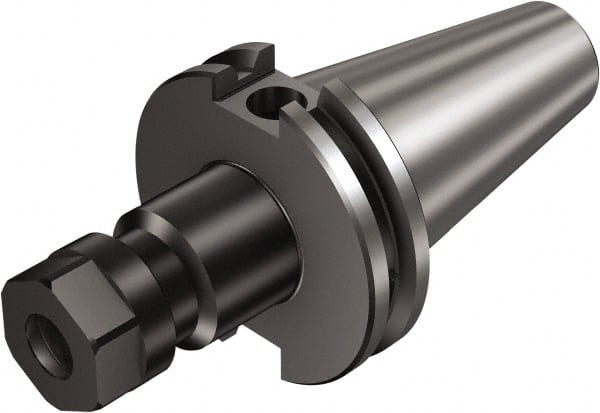

Sandvik Coromant - 104.64mm Projection, CAT40 Taper Shank, ER40 Collet Chuck - 173.04mm OAL
Item #: 03451408
Brand: Sandvik Coromant
Model #: 5721438
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (mm) | 104.64 |
| Projection (Decimal Inch) | 4.1200 |
| Through Coolant | Yes |
| Overall Length (mm) | 173.04 |
| Overall Length (Decimal Inch) | 6.8126 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Nose Diameter (mm) | 62.74 |
| Nose Diameter (Decimal Inch) | 2.4701 |
| Maximum RPM | 18000 |
| PSC Code | 5136 |
