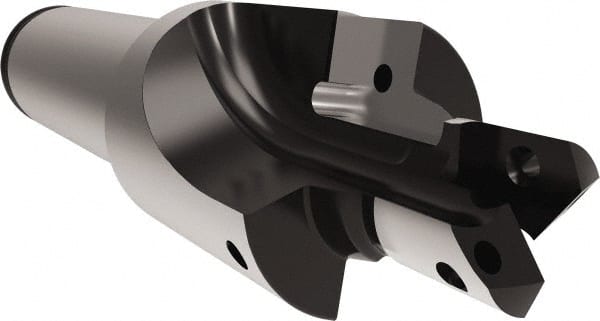

Allied Machine and Engineering - 1/2-20, 0.453" Pilot Diam, 0.904" Spotface Diam, 0.801" Pilot Length, Tube Dash 5, Indexable Porting Tool
Item #: 03472578
Brand: Allied Machine and Engineering
Model #: J1926-05Z-16FM
Product Specifications
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1/2-20 |
| Tube Dash Number | 5 |
| Pilot Diameter (Decimal Inch) | 0.4530 |
| Spotface Diameter (Decimal Inch) | 0.9040 |
| Pilot Length (Decimal Inch) | 0.8010 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 0.5530 |
| Overall Length (Decimal Inch) | 3.1770 |
| Through Coolant | Through Coolant |
| Porting Angle | 12 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.7770 |
| Shank Length (Decimal Inch) | 1.6500 |
| Spotface to Shoulder Length (Decimal Inch) | 0.8810 |
| Series | AccuPort 432 |
