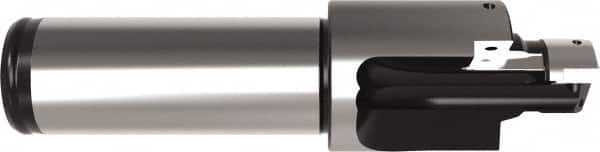

Allied Machine and Engineering - 9/16-18, 0.512" Pilot Diam, 0.969" Spotface Diam, 0.61" Pilot Length, Tube Dash 6, Indexable Porting Tool
Item #: 03472636
Brand: Allied Machine and Engineering
Model #: J1926-060-20FM
Product Specifications
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 9/16-18 |
| Tube Dash Number | 6 |
| Pilot Diameter (Decimal Inch) | 0.5120 |
| Spotface Diameter (Decimal Inch) | 0.9690 |
| Pilot Length (Decimal Inch) | 0.6100 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 0.6180 |
| Overall Length (Decimal Inch) | 3.5080 |
| Through Coolant | Through Coolant |
| Porting Angle | 12 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.8570 |
| Shank Length (Decimal Inch) | 1.6500 |
| Spotface to Shoulder Length (Decimal Inch) | 1.1440 |
| Series | AccuPort 432 |
