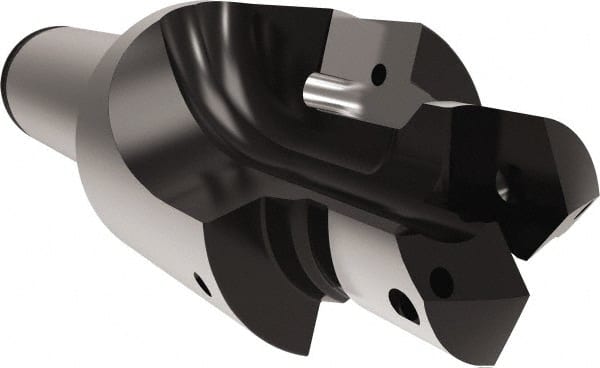

Allied Machine and Engineering - 3/4-16, 0.688" Pilot Diam, 1.207" Spotface Diam, 0.689" Pilot Length, Tube Dash 8, Indexable Porting Tool
Item #: 03472701
Brand: Allied Machine and Engineering
Model #: J1926-080-20FM
Product Specifications
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 3/4-16 |
| Tube Dash Number | 8 |
| Pilot Diameter (Decimal Inch) | 0.6880 |
| Spotface Diameter (Decimal Inch) | 1.2070 |
| Pilot Length (Decimal Inch) | 0.6890 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 0.8130 |
| Overall Length (Decimal Inch) | 3.6300 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.9820 |
| Shank Length (Decimal Inch) | 1.6500 |
| Spotface to Shoulder Length (Decimal Inch) | 1.1500 |
| Series | AccuPort 432 |
