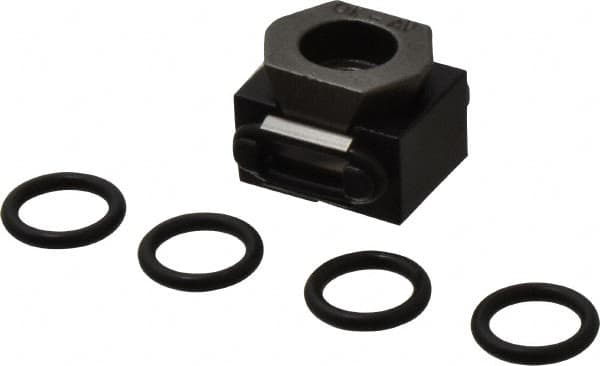

Mitee-Bite - 2,000 Lb Holding Force Single Vise Wedge Clamp - 0.79" Wide x 0.59" Deep x 3/7" High Base, 48 to 52 HRC, 0.79 to 0.98" Jaw Spread, 7 Lb/Ft Torque, 10-32 Screw Thread
Item #: 03529013
Brand: Mitee-Bite
Model #: 47100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | Vise |
| Single or Double Wedge | Single |
| Screw Thread Size | 10-32 |
| Machinable | No |
| Holding Force (Lb.) | 2000.00 |
| Torque (Ft/Lb) | 7.00 |
| Base Height (Decimal Inch) | 0.4300 |
| Base Width (Decimal Inch) | 0.7900 |
| Base Depth (Decimal Inch) | 0.5900 |
| Jaw Hardness (HRC) | 48 to 52 |
| Minimum Jaw Spread (Decimal Inch) | 0.7900 |
| Optimum Jaw Spread (Decimal Inch) | 0.9000 |
| Maximum Jaw Spread (Decimal Inch) | 0.9800 |
| Projection From Base (Decimal Inch) | 0.1600 |
| Overall Width (Decimal Inch) | 0.7900 |
| Includes | Mounting Screw |
