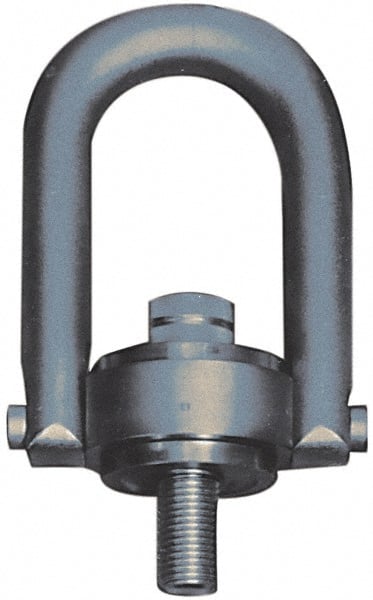

American Drill Bushing - 1,250 Lbs. Rated Load Capacity , 1/2-13 Thread Size - 1.07 Inch Thread Length, 0.7 Inch Radius, 3.77 Inch Ring Height, 1.84 Inch Ring Opening

Item #: 03545183
Brand: American Drill Bushing
Model #: 29301
Exact Tooling IR#: 04

Product Specifications

Load Capacity (Lb.) 1250

Thread Size 1/2 - 13

Ring Height (Decimal Inch) 3.77

Ring Opening (Decimal Inch) 1.84

Thread Length (Decimal Inch) 1.07

Radius (Decimal Inch) 0.70

Torque (Ft/Lb) 14.0

Product Specifications
Load Capacity (Lb.)	1250
Thread Size	1/2 - 13
Ring Height (Decimal Inch)	3.77
Ring Opening (Decimal Inch)	1.84
Thread Length (Decimal Inch)	1.07
Radius (Decimal Inch)	0.70
Torque (Ft/Lb)	14.0
