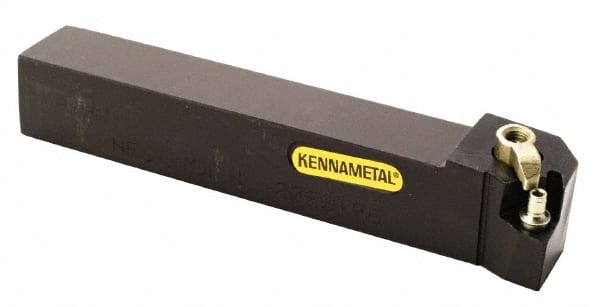

Kennametal - RH MWLN -6° Negative Rake Indexable Turning Toolholder
Item #: 03568409
Brand: Kennametal
Model #: 1101355
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | MWLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Kenloc |
| Lead Angle | 5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | WN..0604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Head Length (mm) | 25.00 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
| Through Coolant | No |
| OverallLength (mm) | 150.00 |
