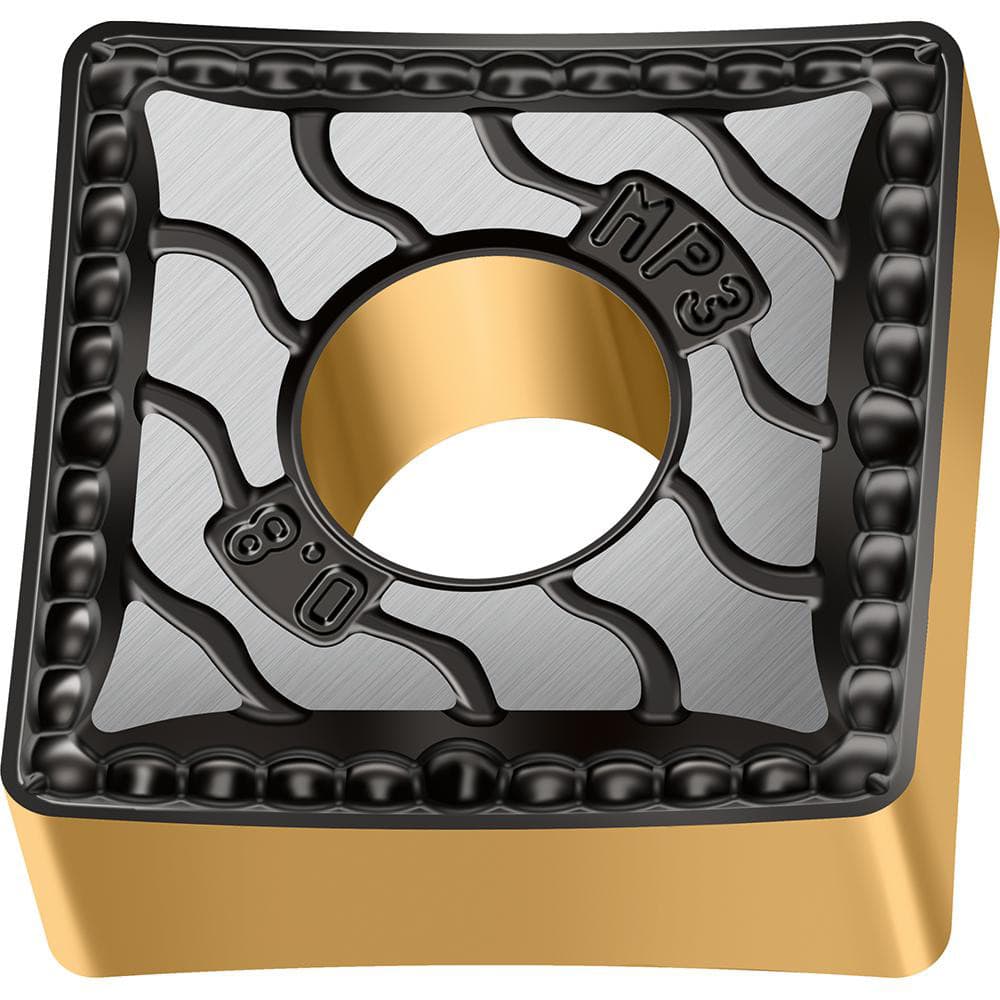

Turning Insert: SNMG433-MP3 WPP20G, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.5000″ Long, 1/2″ Inscribed Circle, 0.0470″ Corner Radius, 90.0 ° N/A Square, Series SNMG-MP3
Item #: 03591310
Brand: Walter
Model #: 8116107
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 433 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP20G |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMG-MP3 |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Inch) | 1/2 |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | SNMG433MP3WPP20G |
| Iso Code | SNMG120412-MP3 WPP20G |
| Chip Breaker | MP3 |
| Coating/Finish | TiCN; TiN; Al2O3 |
