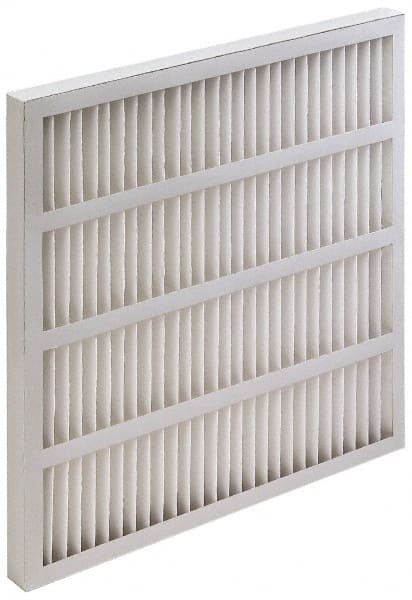

Value Collection - 12" Noml Height x 24" Noml Width x 3-3/4" Noml Depth, 35 to 45% Capture Efficiency, Wireless Pleated Air Filter - MERV 8, Synthetic, Beverage Board Frame, 625 Max FPM, 1,250 CFM, For Heating & Air Conditioning Units
Item #: 03639689
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Filter Type | Wireless Pleated |
| Nominal Height (Inch) | 12 |
| Nominal Width (Inch) | 24 |
| Nominal Depth (Inch) | 3-3/4 |
| Particle Capture Efficiency (%) | 35 - 45 |
| MERV Rating | 8 |
| Media Material | Synthetic |
| Integrated Frame | No |
| Actual Height (Inch) | 23-3/8 |
| Actual Width (Inch) | 11-3/8 |
| Actual Depth (Inch) | 4-3/8 |
| Maximum Air Flow (FPM) | 625 |
| CFM | 1250 |
| Initial Resistance at FPM (Inches w.g.) | 0.25 |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 200 |
| Capacity | Standard |
| Pleats Per Square Foot | 9 |
| Frame Material | Beverage Board |
| Features | Sturdy double wall moisture resistant beverage board frame. |
| For Use With | Heating & Air Conditioning Units |
| Standards Met | UL 900; ASHRAE 52.2-2012 |
