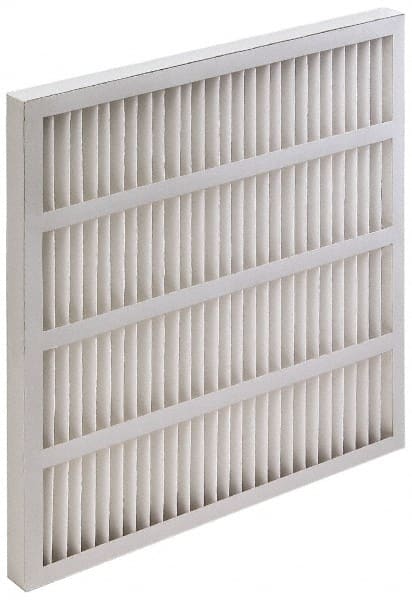

Value Collection - 24" Noml Height x 24" Noml Width x 2" Noml Depth, 35 to 45% Capture Efficiency, Wireless Pleated Air Filter - MERV 8, Synthetic, Integrated Beverage Board Frame, 500 Max FPM, 2,000 CFM, For Heating & Air Conditioning Units
Item #: 03639705
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Filter Type | Wireless Pleated |
| Nominal Height (Inch) | 24 |
| Nominal Width (Inch) | 24 |
| Nominal Depth (Inch) | 2 |
| Particle Capture Efficiency (%) | 35 - 45 |
| MERV Rating | 8 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Inch) | 23-3/8 |
| Actual Width (Inch) | 23-3/8 |
| Actual Depth (Inch) | 1-3/4 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 2000 |
| Initial Resistance at FPM (Inches w.g.) | 0.2600 |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 150 |
| Capacity | Standard |
| Pleats Per Square Foot | 11 |
| Frame Material | Beverage Board |
| Features | Exclusive vForm Self-Supported Pleats; Sturdy moisture resistant beverage board frame. |
| For Use With | Heating & Air Conditioning Units |
| Standards Met | UL 900; ASHRAE 52.2-2012 |
