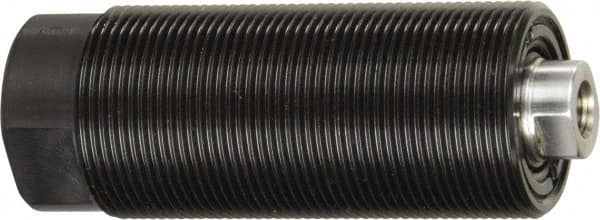

Enerpac - 1.975 Ton, 0.98" Stroke, 0.78 Cu In Oil Capacity, Portable Hydraulic Threaded Cylinder - 0.79 Sq In Effective Area, 3.52" Lowered Ht., 4.5" Max Ht., 1.21875" Plunger Rod Diam, 5,000 Max psi
Item #: 03653078
Brand: Enerpac
Model #: CST18251
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Threaded |
| Load Capacity (Ton) | 1.9750 |
| Piston Stroke (Decimal Inch) | 0.98 |
| Lowered Height | 3.52 |
| Oil Capacity | 0.78 |
| Effective Area | 0.79 |
| Maximum Height (Decimal Inch) | 4.50 |
| Outside Diameter (Inch) | 1-7/32 |
| Plunger Diameter | 1.22 |
| Plunger Internal Thread Size | 5/16-24 |
| Plunger Internal Thread Length | 0.47 |
| Maximum Pressure (psi) | 5000 |
