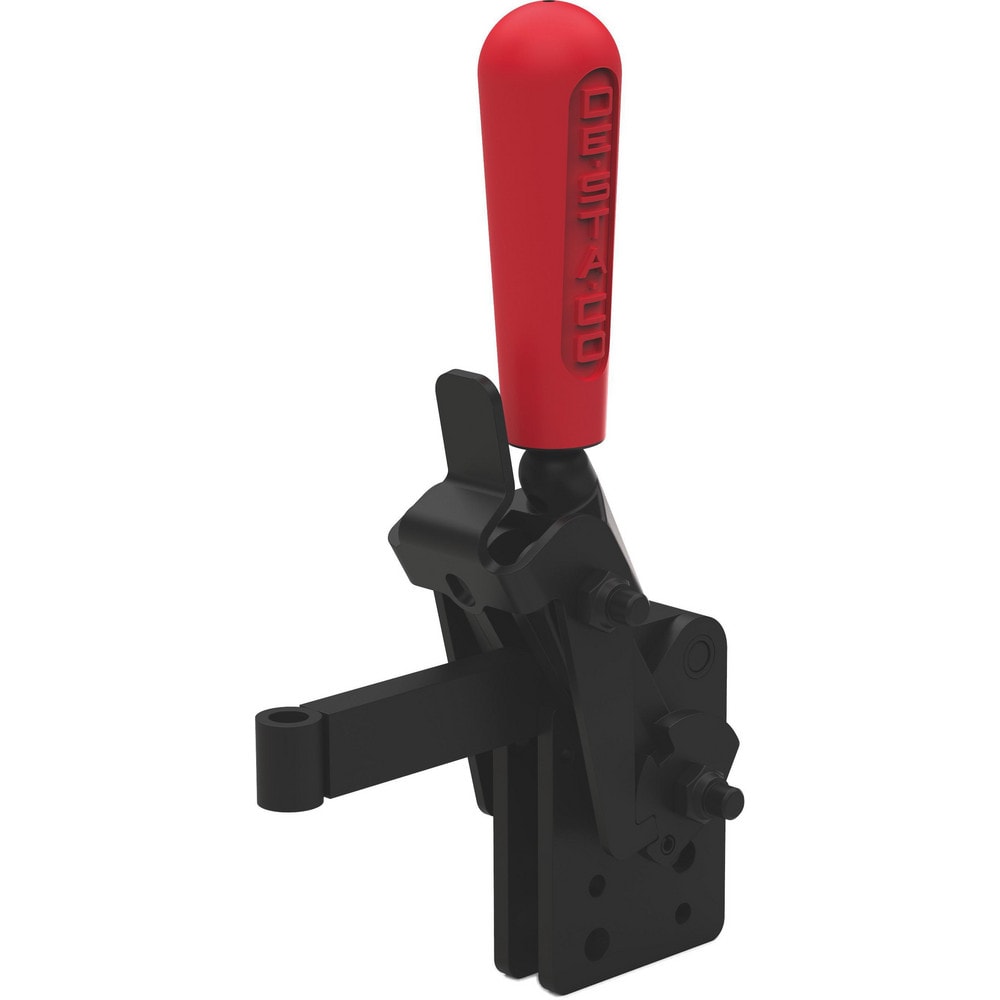

Manual Hold-Down Toggle Clamp: Vertical, 1575 lb Capacity, Solid Bar, Straight Base
Item #: 16302234
Brand: De-Sta-Co
Model #: 533-LBR
Product Specifications
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Straight |
| Bar End Type | Closed |
| Holding Capacity (N) | 7000.00 |
| Holding Capacity (Lb.) | 1575 |
| Length Distance Between Mount Holes (mm) | 30.00 |
| Length Distance Between Mount Holes | 1.18 in |
| Length Distance Between Mount Holes (Inch) | 1.18 |
| Width Distance Between Mount Holes (mm) | 9.90 |
| Width Distance Between Mount Holes | 0.390 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.3900 |
| Height Under Bar (Decimal Inch) | 1.8600 |
| Height Under Bar (mm) | 55.10 |
| Overall Length (mm) | 125.0000 |
| Overall Length (Decimal Inch) | 4.9200 |
| Overall Height (Decimal Inch) | 9.3100 |
| Overall Height (Mm - 5 Decimals) | 236.50000 |
| Base Length (mm) | 59.9000 |
| Base Length (Decimal Inch) | 2.36 |
| Base Width (Inch) | 0.7200 |
| Base Width | 19.10 |
| Handle Style | Straight |
| Material | Steel |
| Handle Material | Steel |
| Spindle Pad Material | Steel |
| Handle Color | Red |
| Bolt Retainer | Yes |
| Spindle Included | No |
| Mounting Hole Diameter (mm) | 5.60 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Bar Opening (Degrees) | 90 |
| Handle Movement (Degrees) | 74 |
| Maximum Mechanical Advantage | 1575 lbf |
| Bar Width (mm) | 20.1 |
| Bar Width (Decimal Inch) | 0.7900 |
| Bar Thickness (mm) | 9.90 |
| UNSPSC Code | 31162902 |
| Handle Width (mm) | 38.60 |
| Handle Width (Decimal Inch) | 1.52 |
| Includes | Bolt Retainer |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.5600 |
| Front of Base To Tip Of Toggle Bar (mm) | 65.00 |
| Number Of Mounting Holes | 4.000 |
