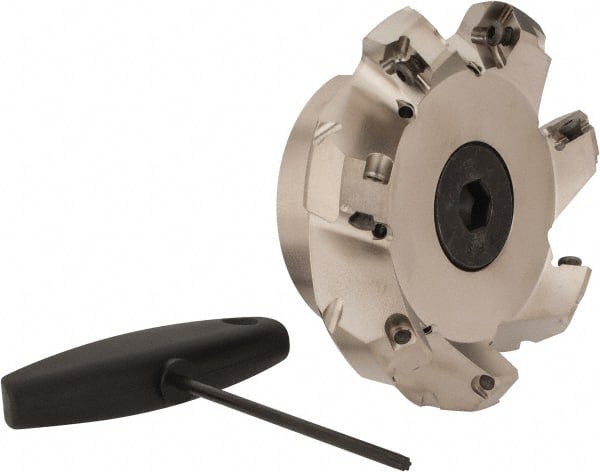

Seco - 4" Cut Diam, 1-1/2" Arbor Hole, 0.295" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, SE.X 1505 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series QuattroMill 15
Item #: 03703386
Brand: Seco
Model #: 21883
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 3.9400 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9700 |
| Insert Compatibility | SE.X 1505 |
| Series | QuattroMill 15 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R220.53 |
| Number of Flutes | 7 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum Body Diameter (Decimal Inch) | 4.5700 |
| Maximum RPM | 6600 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
| Cutting Edge Length (Decimal Inch) | 0.2950 |
| Counterbore Diameter (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | SEEX 15; SEMX 15 |
| Toolholder Material | Steel |
