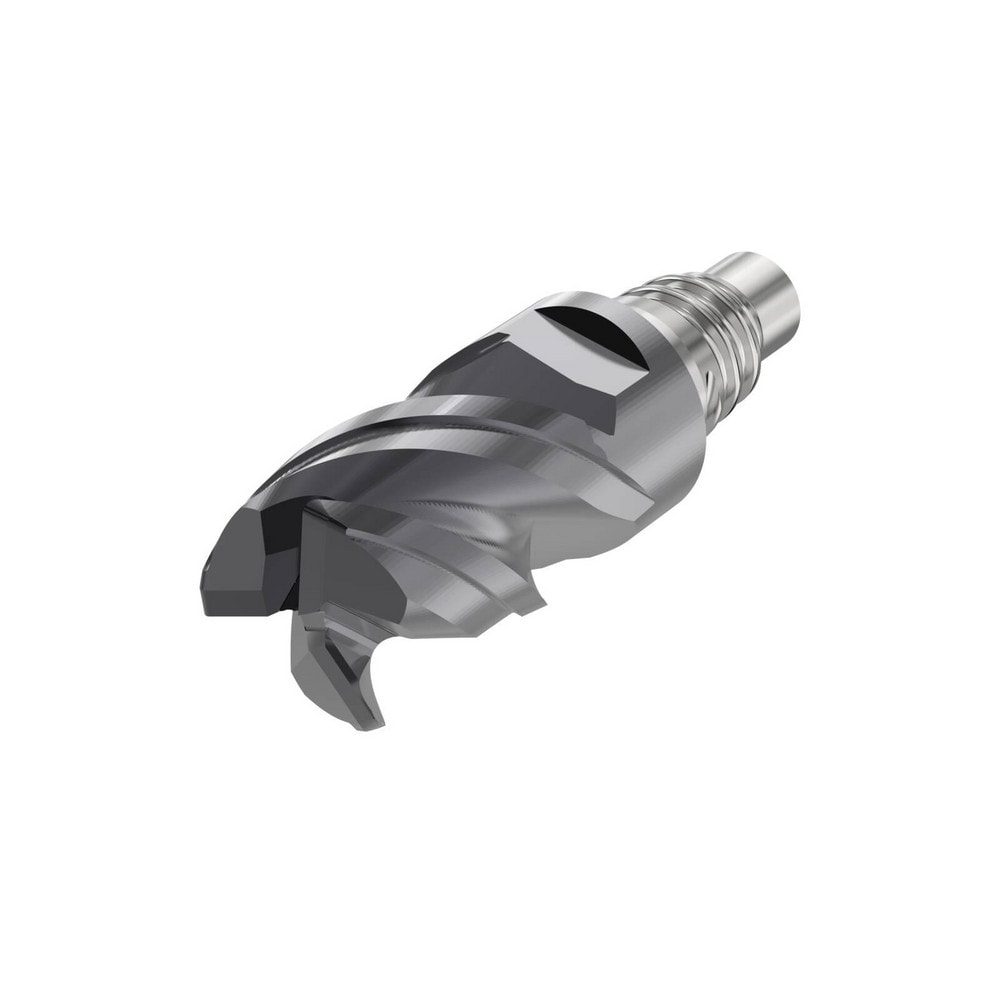

Slotting & Profile Milling Tip Insert: XSE550E10100D2R200Z3 SIRA, Solid Carbide
Item #: 88172838
Brand: Seco
Model #: 10219219
Product Specifications
| Milling Tip Type | Slotting; Profile |
| Milling Tip Style | XSE |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutting Diameter (mm) | 10.00 |
| Tool Material | Solid Carbide |
| Manufacturer Grade | SIRA |
| Insert Hand | Right Hand |
| Chipbreaker | No |
| Series | XSE550 |
| Coating Process | PVD |
| Corner Radius (mm) | 2.00 |
| Cutting Width (mm) | 10.000 |
| Functional Length (mm) | 18.70 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO; ANSI |
| Milling Tip Full Description | XSE550E10100D2R200Z3 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 10219219 |
| Chamfer Angle | 0.000 |
| Insert Size | 10.00 mm |
| Length of Cut (mm) | 12.0000 |
| Helix Angle | 48 |
| Coolant Through | No |
| Overall Length (mm) | 29.9000 |
| Material Grade | Carbide |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 3 |
| Country of Origin | UNITED STATES |
