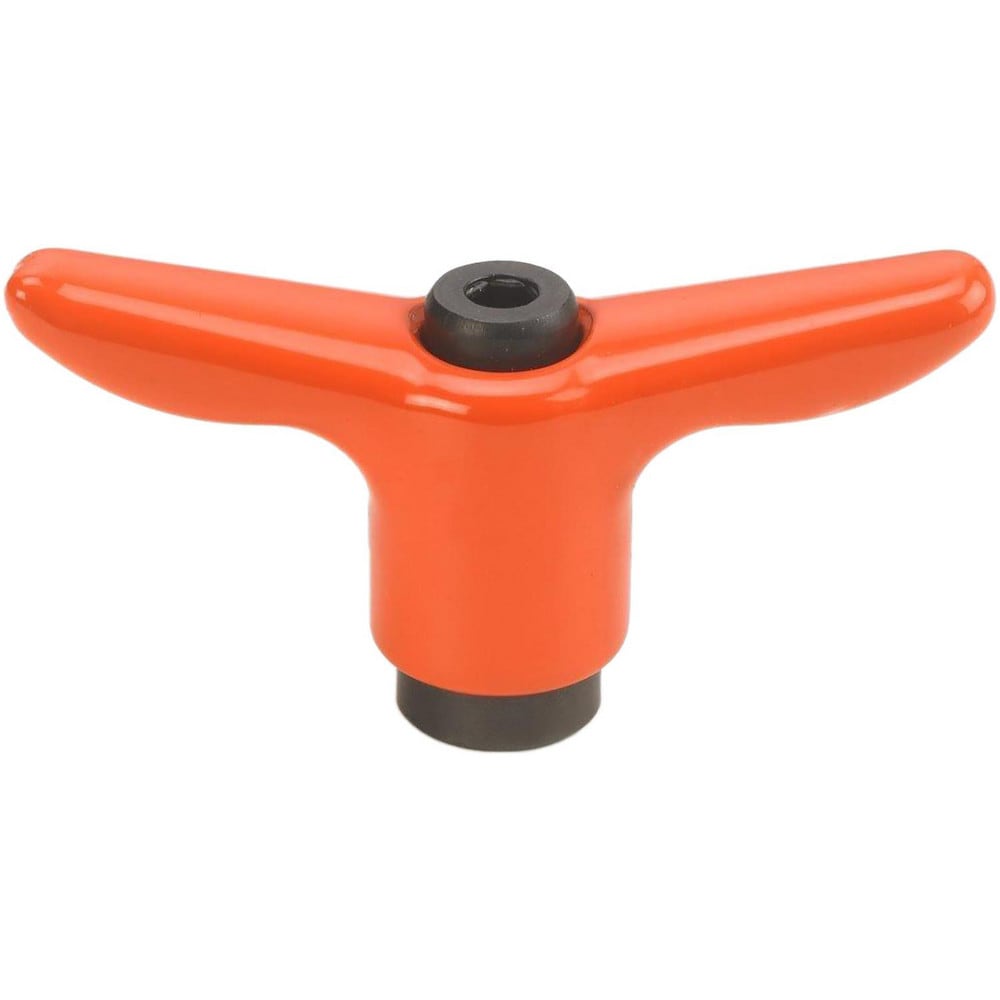

Adjustable Clamping Handle: T-Handle, 1/2-13 Thread, Fiberglass-Reinforced Nylon Handle, 0.7500" Hub Dia, Orange
Item #: 60269594
Brand: Morton Machine Works
Model #: THP-109-OR
Product Specifications
| Connection Type | Threaded Hole |
| Handle Type | T-Handle |
| Mount Type | Threaded Hole |
| Handle Length (Decimal Inch - 4 Decimals) | 3.6200 |
| Overall Length (Decimal Inch) | 3.62 |
| Handle Material | Fiberglass-Reinforced Nylon |
| Overall Height (Decimal Inch) | 1.8200 |
| Thread Size | 1/2-13 |
| Hub Diameter (Decimal Inch) | 0.7500 |
| Color | Orange |
| Standards | REACH; RoHS Compliant |
| Hole Depth (Decimal Inch) | 0.6700 |
| Body Diameter (Decimal Inch) | 0.9600 |
| Base Diameter (Decimal Inch) | 0.7500 |
| Body Height (Decimal Inch) | 1.5200 |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Plain |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 1.8100 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.8200 |
| Threaded Length | 0.6700 |
| Actual Handle Length | 3.6200 |
| Base Radius (Decimal Inch) | 0.3750 |
| Base Width (Inch) | 0.7500 |
| Connection Type | Threaded Hole |
| Handle Type | T-Handle |
| Mount Type | Threaded Hole |
| Handle Length (Decimal Inch - 4 Decimals) | 3.6200 |
| Overall Length (Decimal Inch) | 3.62 |
| Handle Material | Fiberglass-Reinforced Nylon |
| Overall Height (Decimal Inch) | 1.8200 |
| Thread Size | 1/2-13 |
| Hub Diameter (Decimal Inch) | 0.7500 |
| Color | Orange |
| Standards | REACH; RoHS Compliant |
| Hole Depth (Decimal Inch) | 0.6700 |
| Body Diameter (Decimal Inch) | 0.9600 |
| Base Diameter (Decimal Inch) | 0.7500 |
| Body Height (Decimal Inch) | 1.5200 |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Plain |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 1.8100 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.8200 |
| Threaded Length | 0.6700 |
| Actual Handle Length | 3.6200 |
| Base Radius (Decimal Inch) | 0.3750 |
| Base Width (Inch) | 0.7500 |
| MSC Part # | 60269594 |
| Mfr Part # | THP-109-OR |
| Country of Origin Country of Origin is subject to change | Taiwan |
