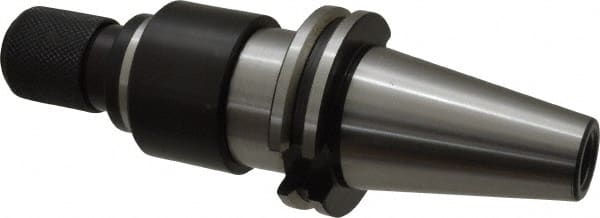

Collis Tool - CAT40 Taper Shank Tension & Compression Tapping Chuck - #0 to 9/16" Tap Capacity, 4.88" Projection, Size 1 Adapter, Quick Change
Item #: 03734878
Brand: Collis Tool
Model #: 77810
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Projection (Decimal Inch) | 4.8800 |
| Quick Change | Yes |
| Adapter Size | 1 |
| Nose Diameter (mm) | 31.75 |
| Nose Diameter (Decimal Inch) | 1.2500 |
| Tension (Decimal Inch) | 0.8800 |
| Compression (Decimal Inch) | 0.3800 |
| Through Coolant | No |
